Seamless Round Metal Tube Copper And Copper Alloys

Short Description:

Standard: ASTM B111 C44300/ GB/T 31977

Material: C70600,C68700,C44300,C12200

Shaped Tubes: Round Brass Tube, rectangle Copper Tubes

Temper Designation: Light-drawn;hard-drawn;annealed

Size Range: OD: 3mm-150mm WT: 0.5mm-10mm

Application: Condenser;heat-exchanger

Package: Wooden Case


Product Detail

Product Tags

Admiralty Brass Tube for condenser and heat-exchange series

1)Up to GB/T8890 / ASTM B111 / JIS H3300 / BS EN12451 standards and so on.
2) Material Brand of Admiralty Brass Tube:

Grade USA U.K Germany Japan
China BG ASTM CDA BS DIN No JIS H
HSn70-1 C44300 443 CZ111 CuZn28Sn1 2.0471 C4430

3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-100mm, Wall thickness: 0.5-10mm or according to the

buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5)Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Admiralty Brass Tube for condenser and heat-exchange, Water

Evaporators, Boiler Blowdown Heat Exchange, air coolers, Gland Steam Condensers, Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After Coolers, Ferrules, Oil Well Pump Liner , Distiller , Marine Industry , and Nuclear Power etc.

Aluminum Brass Tube for condenser , heat-exchange and nuclear power series

1)Up to GB/T8890 / ASTM B111 / JIS H3300 / BS EN12451 standards and so on.
2) Material Brand of Aluminum Brass Tube:

Grade USA U.K Germany Japan
China BG ASTM CDA BS DIN No JIS H
HAL77-2 C68700 687 CZ110 CuZn22Al 2.0460 C6870

3)Tubes temper: All tempers are available (Goods supply state: Annealed condition)
4)Dimensions: Outer diameter:5-100mm, Wall thickness: 0.5-10mm or according to the

buyers' requirements, and also length and tolerance subject to the buyer's decisions.
5)Tubes in good straightness, with clean surface of both inside and outside
6)Application range: Aluminum Brass Tube for condenser and heat-exchange, Water

Evaporators, Boiler Blowdown Heat Exchange, air coolers, Gland Steam Condensers,

Steam Ejector, Turbine Oil Coolers, Fuel Oil Heaters, Compressed Air Inter and After

Coolers, Ferrules, Oil Well Pump Liner, Distiller , Marine Industry , and Nuclear Power etc.



Copper round tube, copper alloy pipe, ASTM B111 C70600, C44300, C4500, C45010 Copper tube, C68700 Brass tubing

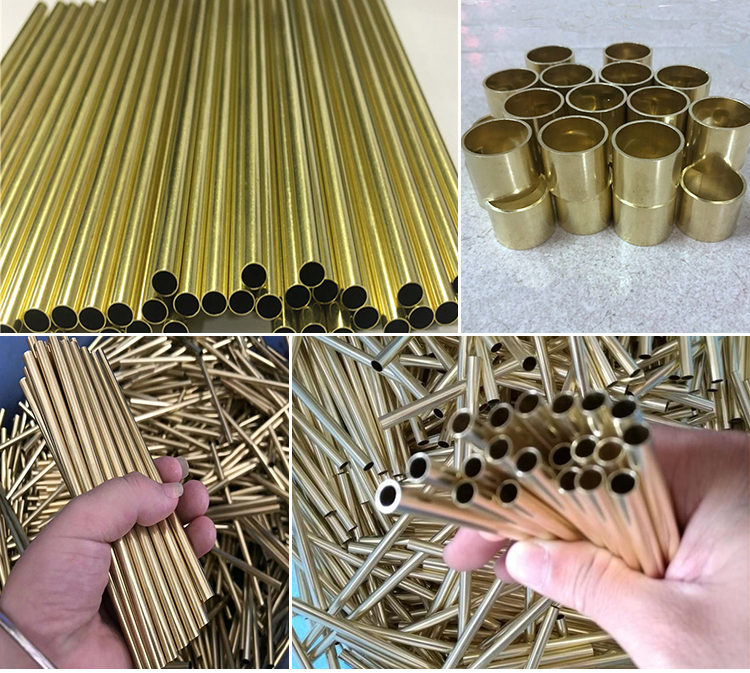

Product Display
