JINBAICHENG Metal Materials Co., Ltd

Best Selling Seamless Stainless Steel Pipe Metal Pipe

Short Description:

1.1 The chemical composition of domestic seamless pipes supplied by chemical composition and mechanical properties, such as 10, 15, 20, 25, 30, 35, 40, 45 and 50 gauge steel should conform to the provisions of GB/T699-88. Imported seamless pipes are tested according to the relevant standards specified in the contract. 09MnV, 16Mn, 15MnV steel chemical composition should be in accordance with the provisions of GB1591-79.


Product Detail

Product Tags

Structural components

1.1 The chemical composition of domestic seamless pipes supplied by chemical composition and mechanical properties, such as 10, 15, 20, 25, 30, 35, 40, 45 and 50 gauge steel should conform to the provisions of GB/T699-88. Imported seamless pipes are tested according to the relevant standards specified in the contract. 09MnV, 16Mn, 15MnV steel chemical composition should be in accordance with the provisions of GB1591-79.

1.2 specific analysis methods refer to GB223-84 "Steel and alloy chemical analysis methods" of the relevant part.

1.3 analysis deviation with reference to GB222-84 "chemical analysis of steel with specimens and finished chemical composition allowable deviation".

Product Display

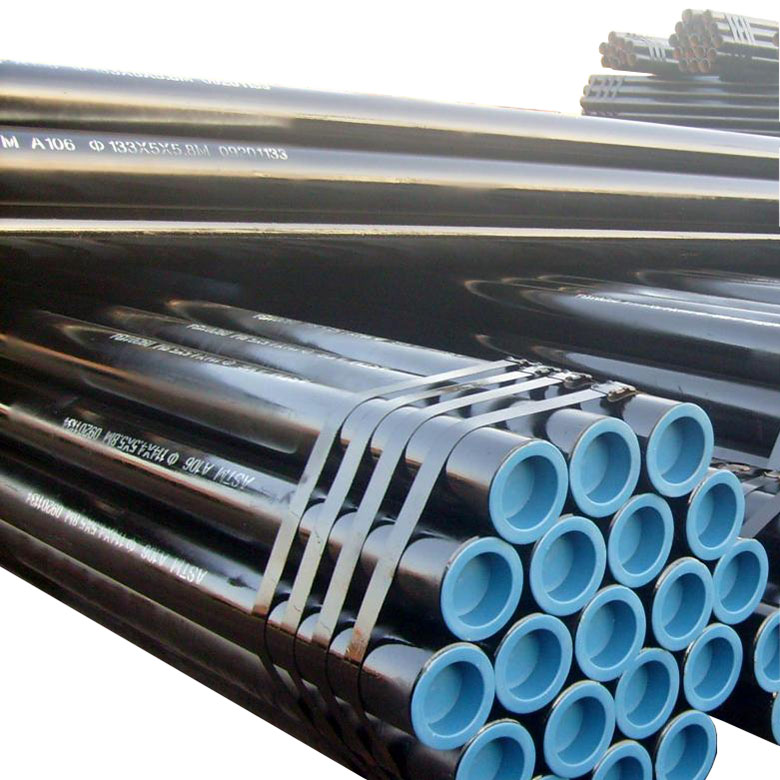

Stainless Steel Pipe

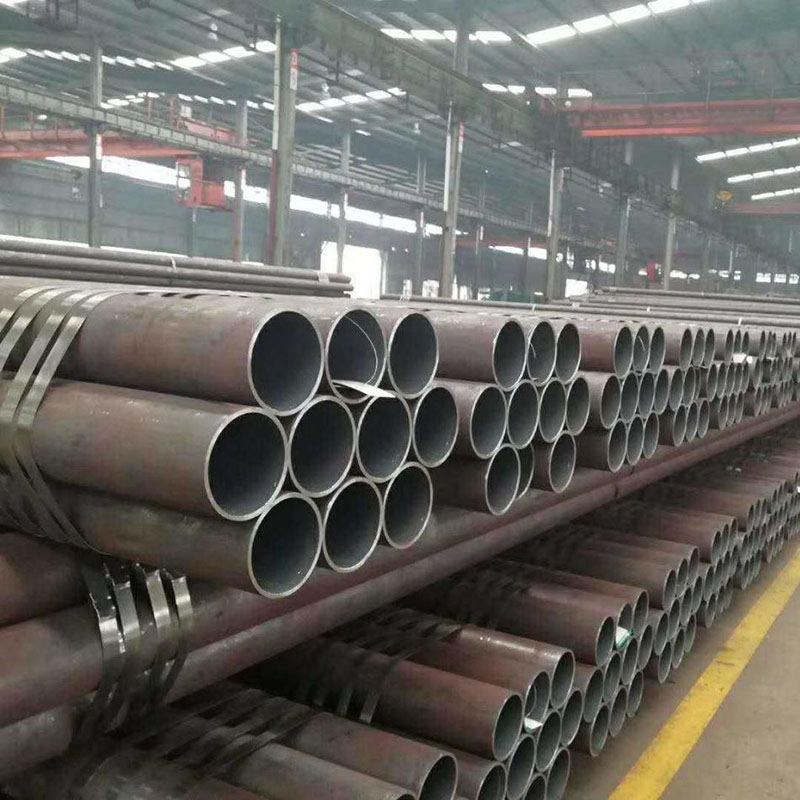

Stainless Steel Pipe2

Physical properties

1.1 according to the institutional performance of the supply of domestic seamless pipe, ordinary carbon steel according to GB/T700-88 A steel manufacturing (but must ensure that the sulfur content does not exceed 0.050% and phosphorus content does not exceed 0.045%), its mechanical properties should be consistent with the values specified in the table GB8162-87.

1.2 The domestic seamless pipes supplied according to the hydraulic test must ensure the hydraulic test as stipulated in the standard.

1.3 The physical property inspection of imported seamless pipes shall be carried out according to the relevant standards specified in the contract.

Typical use

1.1 Seamless pipe is widely used. General purpose seamless pipe is rolled from ordinary carbon structural steel, low alloy structural steel or alloy structural steel, the most production, mainly used as a pipeline or structural parts for the transport of fluids.

1.2 according to the use of different types of supply: a, according to the chemical composition and mechanical properties of supply; b, according to the mechanical properties of supply; c, according to the hydraulic test supply. Steel pipes supplied according to category a and b are also subjected to hydrotesting if they are used to withstand liquid pressure.

1.3 Specialized purpose seamless tubes include seamless tubes for boilers, seamless tubes for geology and seamless tubes for petroleum, and many others.

Main Products and Technical parameters

Product Name In-stock material Implementation Standards In-stock specifications Product Applications
Alloy Tubes

12Cr1MoVG

12CrMoG15CrMoG

12Cr2Mo<A335P22>

Cr5Mo<A335P5>

Cr9Mo<A335P9>

10Cr9Mo1VNb<A335P91>

15NiCuMoNb5<WB36>

12Cr2MoWVTiB<钢102>

GB5310-1995

GB6479-2000GB9948-2006

DIN17175-79

ASTM SA335

ASTM SA213

JISG3467-88

JISG3458-88

∮8-1240*1-200 Seamless steel tubes for high temperature, low temperature and corrosion resistance for petroleum, chemical, electric power and boiler industries
Stainless Steel Tubes

0Cr18Ni9<304>

00Cr19Ni10<304L>

00Cr25Ni20<310S>

0Cr17Ni12Mo2<316>

00Cr17Ni14Mo2<316L>

1Cr18Ni9Ti<321>

0Cr18Ni10Ti

0Cr18Ni11Nb<347>

GB/T14975-2002

GB/T14976-2002

GB13296-2007

ASTM A213

ASTM A269

ASTM A312

JIS G3459

DIN 17458

∮6-630*0.5-60 Applicable to petroleum, aviation, smelting, food, water conservancy, electric power, chemical, chemical fiber, pharmaceutical machinery and other industries
Cryogenic tubes

16MnDG、10MnDG、09DG

09Mn2VDG、06Ni3MoDG

ASTM A333Grade1

ASTM A333Grade3

ASTM A333Grade4

ASTM A333Grade6

ASTM A333Grade7

ASTM A333Grade8

ASTM A333Grade9

ASTM A333Grade10

ASTM A333Grade11

GB/T18984-2003ASTM A333 ∮8-1240*1-200 Seamless steel pipe for -45℃~-195℃ class low temperature pressure vessel piping and low temperature heat exchange piping
High pressure boiler tube 20GASTM SA106B/CASTM SA210A/C

ST45.8-III

GB5310-1995ASTM SA106ASTM SA210

DIN17175-79

∮8-1240*1-200 Suitable for manufacturing high-pressure boiler heater tubes, collectors, steam pipes, etc.
High pressure fertilizer pipe 102016Mn GB6479-2000 ∮8-1240*1-200 Applicable to chemical equipment and pipelines with working temperature of -40--400℃ and working pressure of 10-32Mpa
Petroleum cracking pipe 1020 GB9948-2006 ∮8-630*1-60 Furnace tubes, heat exchange tubes and pipes for petroleum refineries
Low and 15px pressure boiler tubes 10#20#16Mn<Q345A.B.C.D.E> GB3087-2008 ∮8-1240*1-200 Suitable for manufacturing various structures of low and 15px pressure boilers and locomotive boilers
Fluid transport pipes 10#、20#ASTM A106A,B,C、A53A,B16Mn<Q345A.B.C.D.E> GB/T8163-2008ASTM A106ASTM A53 ∮8-1240*1-200 General seamless steel pipes suitable for transporting fluids
General structural tube 10#、20#、45#、27SiMnASTM A53A,B16Mn<Q345A,B,C,D,E> GB/T8162-2008GB/T17396-1998ASTM A53 ∮8-1240*1-200 Suitable for general structures, engineering supports, machining, etc.
Oil casing J55、K55、N80、L80C90、C95、P110 API SPEC 5CTISO11960 ∮60.23-508.00*4.24-16.13 Oil tubing is used to pump oil or gas in oil wells Casing is used as the well wall of oil and gas wells
Pipeline Pipe A、B、X42、X46、X52、X56、X60、X65、X70、X80L245、L290、L360、L415、L450 API SPEC 5LGB/T9711.1GB/T9711.2 ∮32-1240*3-100 Oxygen, water and oil transmission pipes used in the oil and gas industry
Straight seam steel pipe 20、Q195、Q215A,BQ235A,B、Q345A,B,C,D,E GB/T13793-1992GB3091-2001 ∮32-630*1-30 Suitable for general structural support, low pressure fluid transfer, etc.
Spiral steel pipe Q235A-B、Q345A-E SY/T5037-2000 219-2820*4-20 Steel pipes for low pressure fluid transportation
