ASTMA36,JIS SS400,Q235 Galvanized Flat Bar

Short Description:

JInbaicheng is offering Galvanized Flat Bar of Q235 with Leigth 6M/12M at great prices with worldwide shipping. Jinbaicheng annually supplies products to European, North American and Asian markets. We provide quotations within 24 hours of receiving an inquiry and guarantee competitive prices.


Product Detail

Product Tags

Specifications of Galvanized Flat Bar

  • Invoicing on theoretical weight or actual weight as customer request
  • Length: 6m, 12m as following table
  • Galvanized Flat Bar Zinc Thickness:15-80μ
  • Grade: A36, SS400, Q235, Q195
  • Standard: ASTM, JIS, GB
  • Thickness:1.5mm-20mm
  • Width: 10mm-250mm

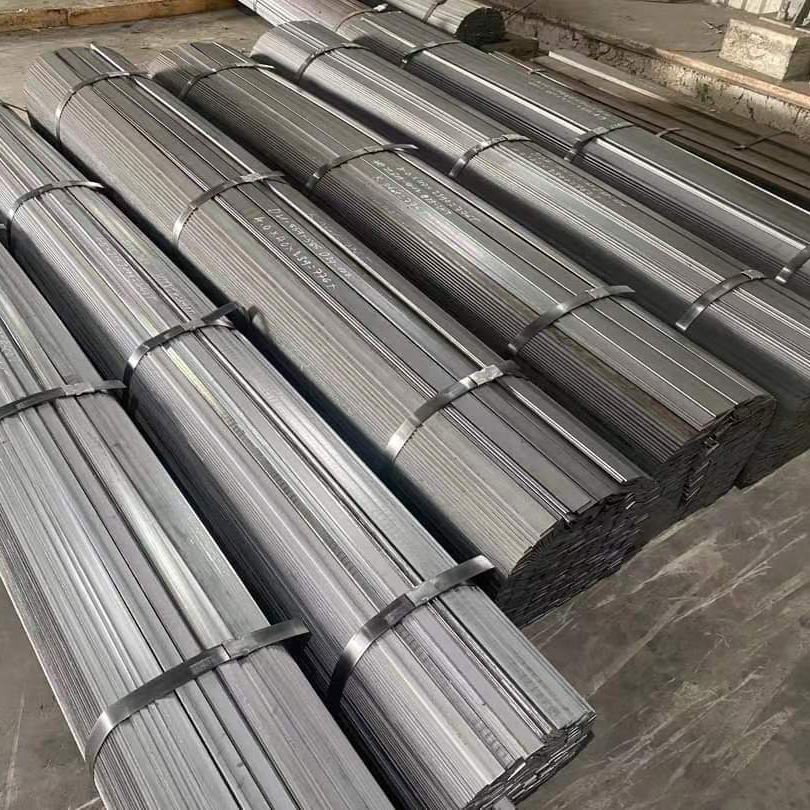

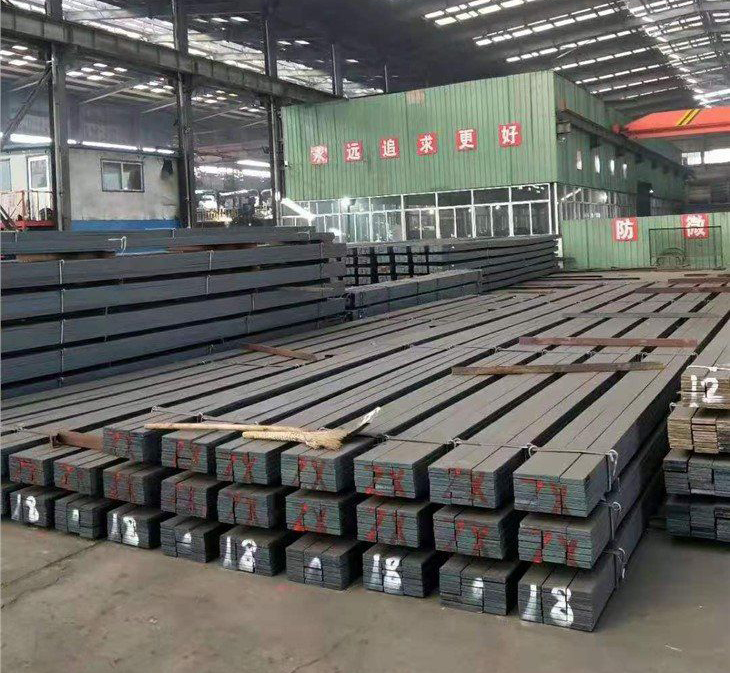

Product Display


Sizes of Flat Bar For Reference

Width Thickness Width Thickness Width Thickness
(mm) (mm) (mm) (mm) (mm) (mm)
8 5-7 50 5-25 200 8-40
10 3-9 55 5-25 220 8-40
12 3-9 60 5-25 250 8-40
13 5-11 65 5-25 260 8-40
14 3-12 70 5-25 270 8-40
15 5-12 75 5-25 280 8-40
16 4-14 80 6-25 290 8-40
18 4-16 85 6-25 300 8-40
20 4-18 90 6-25 310 8-40
22 4-20 95 6-25 320 8-40
24 5-20 100 6-25 330 8-40
25 4-20 105 6-25 340 8-40
28 4-20 110 6-25 350 8-40
30 4-25 120 7-25 360 8-40
32 4-25 125 7-25 370 8-40
35 4-25 130 8-25 380 8-40
36 6-25 140 8-25 390 8-40
38 7-25 150 8-25 400 8-40
40 4-25 160 8-40
45 4-25 180 8-40



Material Specifications

Production  Standard:  GB/T 700-2006
Grade Chemical composition (%,max)
C Si Mn P S
Q195 0.12 0.30 0.50 0.035 0.040
Q235A 0.22 0.35 1.40 0.045 0.050
Q235B 0.20 0.35 1.40 0.045 0.045
Q235C 0.17 0.35 1.40 0.040 0.040
Q235D 0.17 0.35 1.40 0.035 0.035

Q235 is similar to ASTMA36,JIS SS400

Usage & Applications of Galvanized Flat Bar

Widely used for construction,Fabrication , Ship building, Machinery manufacturing, Steel structure

Packaging & Delivery

1. Packing: it is nude packed in bundles by steel wire rod

2. Bundle weight: not more than 3.5MT for bulk vessel; less than 3 MT for container load

3. Marks:

Color marking: There will be color marking on both end of the bundle for the cargo delivered by bulk vessel. That makes it easily to distinguish at the destination port.

Tag mark: there will be tag mark tied up on the bundles. The information usually including supplier logo and name, product name, made inChina, shipping marks and other information request by the customer.

If loading by container the marking is not needed, but we will prepare it as customer request.

4. Transportation: the goods are delivered by truck from mill to loading port, the maximum quantity can be loaded is around 40MTs by each truck. If the order quantity cannot reach the full truck loaded, the transportation cost per ton will be little higher than full load.

5. Delivered by container or bulk vessel
